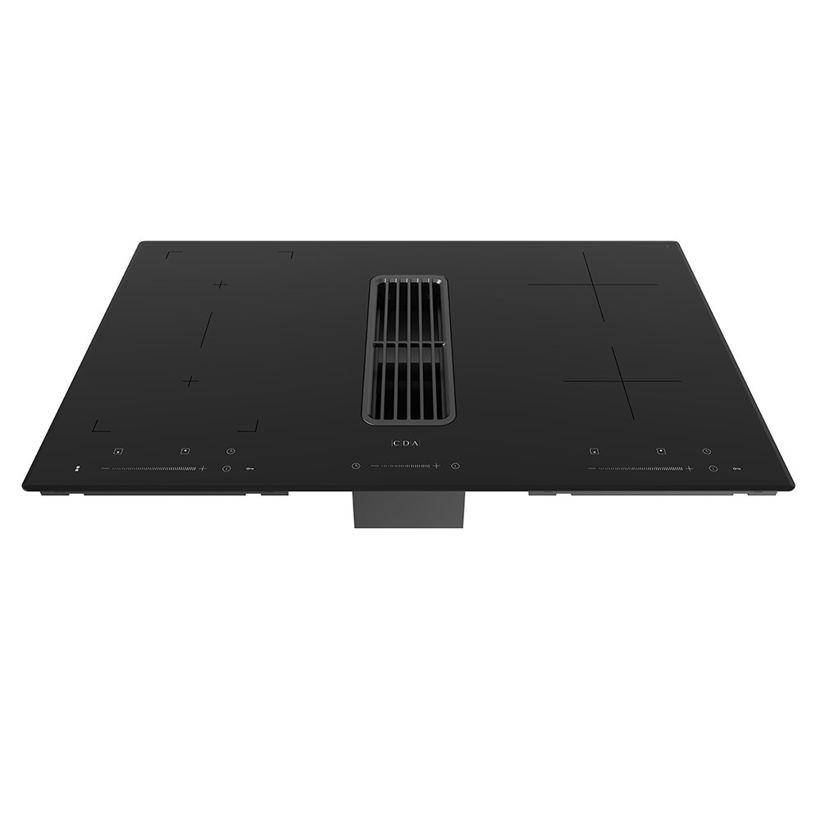

CDA 4 zone venting induction hob HNE81FR – Gas Hob
Online KitchensUK Est. family business · UK Free design
Search
Popular:
Appliances / Hobs / 4 zone venting induction hob
Black glass, frameless · HNE81FR, CDA Black glass, frameless · HNE81FR

Model & price.

1 model
ModelCodeFinishSizePrice
4 zone venting induction hob, black glass, frameless, HNE81FR 4 zone venting induction hob, black glass, framelessTechnical drawing HNE81FR Black glass, frameless 80cm · W800 × D520mm £1,143.12
Technical drawing of 4 zone venting induction hob, black glass, frameless with dimensions in mm
Dimension drawing from CDA · in mm
  • 4 zones
  • Bridging zones
  • Front controls
  • 9 power levels
  • Cut-out 780x500mm
Stock: In Stock User manual (PDF)Energy label (PDF)

Prices are from our current online store. CDA appliances are delivered for £40 + VAT, however many you order.

About the CDA 4 zone venting induction hob HNE81FR.

Buy the CDA 4 zone venting induction hob HNE81FR online from Online Kitchens UK. It is a 80cm hob in black glass, frameless, priced at £1,143.12. CDA appliances are delivered for £40 + VAT however many you order, and we can plan the housing for it in your free kitchen design.

Choose from induction hobs, gas hobs, gas-on-glass hobs and ceramic electric hobs, including domino hobs you can pair side by side.

Induction, gas or ceramic?

Induction hobs heat the pan directly, so they respond quickly and the glass around the pan stays cooler; they need induction-compatible pans. Gas hobs give instant, visible heat and our CDA models have flame failure safety. Ceramic hobs are a lower-cost electric option with a flat glass top.

Sizes

Hobs here run from 30cm domino hobs, which you can pair side by side, through standard 60cm hobs to 70cm, 77cm, 80cm and 86cm models with five zones or burners, some with a wok burner or bridging zones for large pans.

Induction hob with built-in extractor

The CDA 4 zone venting induction hob draws steam down through the hob itself, so you don’t need a cooker hood above it. It suits islands and kitchens where you want a clear view.

Read our full guide to induction, gas & ceramic hobs →

What you're actually buying.

  • 4 zones
  • Bridging zones
  • Front controls
  • 9 power levels
  • Cut-out 780x500mm
  • Delivered for £40 + VAT, however many CDA appliances you order

CDA is a UK kitchen appliance brand, founded in 1991 and part of the Amica Group since 2015. It makes built-in ovens, hobs, extractors, fridges and freezers, wine coolers, dishwashers and laundry for UK kitchens.

Specification for 4 zone venting induction hob, black glass, frameless (HNE81FR)
BrandCDA
TypeHobs
Width80cm
FinishBlack glass, frameless
ModelsHNE81FR
SizeW800 × D520mm
Our price£1,143.12
Features13 items
Zones4
9 power levels✓
Left zones bridging function✓
Automatic pan detection✓
Timer0-99min
Overflow detection✓
Overheat detection✓
Auto safety switch off✓
Child lock✓
LED display✓
Electronic touch and slide control✓
Front control✓
Residual heat indicators✓
Zone Information4 items
Left front180mm: 1.5kW
Left rear180mm: 2kW
Right front140mm: 1.5kW
Right rear180mm: 2kW
Extraction Rates and Noise6 items
Extraction rate speed 1296.3m³/h m³/hr
Extraction rate speed 2420m³/h m³/hr
Extraction rate speed 3534m³/h m³/hr
Noise level speed 155dBA dBA
Noise level speed 263dBA dBA
Noise level speed 369dBA dBA
Filters6 items
Number of charcoal filters (optional)1
Charcoal filter codeCHA44, pack of 1
Type of grease filterAluminium
Number of grease filters1
Number of layers3
Grease filtering classG
Dimensions8 items
Height62mm
Width800mm
Depth520mm
In-furniture depth56 mm
Cut out size WxD780x500mm
Packaged dimensions (gross) HxWxD525x905x605mm
Net weight23kg
Gross weight33kg
Technical Specification2 items
Rated electrical power6.94 kW
Power cable length1m

Specification, photos and drawings from CDA (cda.co.uk), checked September 2026. Prices are our own. Your designer will confirm housing sizes before you order.

Dimensions & fitting.

Dimension and fitting drawings from CDA for 4 zone venting induction hob. Click a drawing to enlarge it. Your designer checks the housing or cut-out against your plan.
