Accessories / Hettich drawers / AvanTech YOU drawer box, 450mm deep

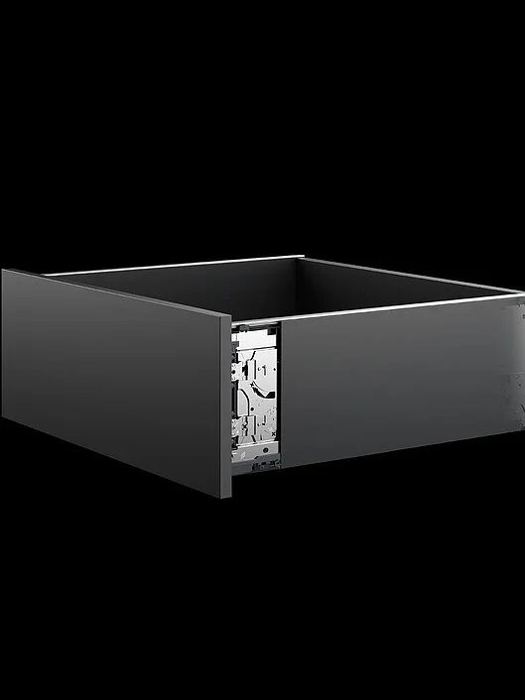

Running gear inside the 13mm side Running gear inside the 13mm side

Every part in AvanTech YOU drawer box, 450mm deep.

10 parts
Type
ModelCodeFinishSizePrice
AvanTech YOU drawer set, H101, 450mm deep, silver, Quadro YOU runner M, 9297230 AvanTech YOU drawer set, H101, 450mm deep, silver, Quadro YOU runner M 9297230 Silver H101 × NL450mm Ask us Ask for a price
  • Hettich article 9297230
  • Side height 101mm, nominal length 450mm
  • Quadro YOU runner, load class M (30kg)
  • Minimum installed depth 453mm
  • Set includes: side profiles left and right, 2 design profiles, 2 front connectors, 2 rear panel stabilisers, 2 cover caps, runners left and right and fixings
AvanTech YOU drawer set, H101, 450mm deep, anthracite, Quadro YOU runner M, 9297264 AvanTech YOU drawer set, H101, 450mm deep, anthracite, Quadro YOU runner M 9297264 Anthracite H101 × NL450mm Ask us Ask for a price
  • Hettich article 9297264
  • Side height 101mm, nominal length 450mm
  • Quadro YOU runner, load class M (30kg)
  • Minimum installed depth 453mm
  • Set includes: side profiles left and right, 2 design profiles, 2 front connectors, 2 rear panel stabilisers, 2 cover caps, runners left and right and fixings
AvanTech YOU drawer set, H101, 450mm deep, silver, Actro YOU runner L, 9297278 AvanTech YOU drawer set, H101, 450mm deep, silver, Actro YOU runner L 9297278 Silver H101 × NL450mm Ask us Ask for a price
  • Hettich article 9297278
  • Side height 101mm, nominal length 450mm
  • Actro YOU runner, load class L (40kg)
  • Minimum installed depth 453mm
  • Set includes: side profiles left and right, 2 design profiles, 2 front connectors, 2 rear panel stabilisers, 2 cover caps, runners left and right and fixings
AvanTech YOU drawer set, H101, 450mm deep, anthracite, Actro YOU runner L, 9297291 AvanTech YOU drawer set, H101, 450mm deep, anthracite, Actro YOU runner L 9297291 Anthracite H101 × NL450mm Ask us Ask for a price
  • Hettich article 9297291
  • Side height 101mm, nominal length 450mm
  • Actro YOU runner, load class L (40kg)
  • Minimum installed depth 453mm
  • Set includes: side profiles left and right, 2 design profiles, 2 front connectors, 2 rear panel stabilisers, 2 cover caps, runners left and right and fixings
AvanTech YOU drawer set, H139, 450mm deep, anthracite, Quadro YOU runner M, 9305168 AvanTech YOU drawer set, H139, 450mm deep, anthracite, Quadro YOU runner M 9305168 Anthracite H139 × NL450mm Ask us Ask for a price
  • Hettich article 9305168
  • Side height 139mm, nominal length 450mm
  • Quadro YOU runner, load class M (30kg)
  • Minimum installed depth 453mm
  • Set includes: side profiles left and right, 2 design profiles, 2 front connectors, 2 rear panel stabilisers, 2 cover caps, runners left and right and fixings
AvanTech YOU internal pot-and-pan drawer set, H187, 450mm deep, silver, Quadro YOU runner M, 9297267 AvanTech YOU internal pot-and-pan drawer set, H187, 450mm deep, silver, Quadro YOU runner M 9297267 Silver H187 × NL450mm Ask us Ask for a price
  • Hettich article 9297267
  • Side height 187mm, nominal length 450mm
  • Quadro YOU runner, load class M (30kg)
  • Minimum installed depth 453mm
  • Set includes: side profiles left and right, 2 design profiles, 2 front connectors, 2 rear panel stabilisers, 2 cover caps, runners left and right and fixings
AvanTech YOU internal pot-and-pan drawer set, H187, 450mm deep, anthracite, Quadro YOU runner M, 9297270 AvanTech YOU internal pot-and-pan drawer set, H187, 450mm deep, anthracite, Quadro YOU runner M 9297270 Anthracite H187 × NL450mm Ask us Ask for a price
  • Hettich article 9297270
  • Side height 187mm, nominal length 450mm
  • Quadro YOU runner, load class M (30kg)
  • Minimum installed depth 453mm
  • Set includes: side profiles left and right, 2 design profiles, 2 front connectors, 2 rear panel stabilisers, 2 cover caps, runners left and right and fixings
AvanTech YOU internal pot-and-pan drawer set, H187, 450mm deep, silver, Actro YOU runner L, 9297294 AvanTech YOU internal pot-and-pan drawer set, H187, 450mm deep, silver, Actro YOU runner L 9297294 Silver H187 × NL450mm Ask us Ask for a price
  • Hettich article 9297294
  • Side height 187mm, nominal length 450mm
  • Actro YOU runner, load class L (40kg)
  • Minimum installed depth 453mm
  • Set includes: side profiles left and right, 2 design profiles, 2 front connectors, 2 rear panel stabilisers, 2 cover caps, runners left and right and fixings
AvanTech YOU internal pot-and-pan drawer set, H187, 450mm deep, anthracite, Actro YOU runner L, 9297297 AvanTech YOU internal pot-and-pan drawer set, H187, 450mm deep, anthracite, Actro YOU runner L 9297297 Anthracite H187 × NL450mm Ask us Ask for a price
  • Hettich article 9297297
  • Side height 187mm, nominal length 450mm
  • Actro YOU runner, load class L (40kg)
  • Minimum installed depth 453mm
  • Set includes: side profiles left and right, 2 design profiles, 2 front connectors, 2 rear panel stabilisers, 2 cover caps, runners left and right and fixings
AvanTech YOU inlay internal pot-and-pan drawer set, H187, 450mm deep, silver, Actro YOU runner L, 9297299 AvanTech YOU inlay internal pot-and-pan drawer set, H187, 450mm deep, silver, Actro YOU runner L 9297299 Silver H187 × NL450mm Ask us Ask for a price
  • Hettich article 9297299
  • Side height 187mm, nominal length 450mm
  • Actro YOU runner, load class L (40kg)
  • Minimum installed depth 453mm
  • Set includes: side profiles left and right, 2 design profiles, 2 front connectors, 2 rear panel stabilisers, 2 cover caps, runners left and right and fixings

This range isn’t on our online store yet. Call 01242 523879 or send us your plan and we’ll price it for you.

About AvanTech YOU drawer box, 450mm deep.

Buy Hettich AvanTech YOU drawer box, 450mm deep online from Online Kitchens UK. This Hettich drawer box range is made for 450mm cabinets, in silver and anthracite. Call 01242 523879 for a price. Order it with your kitchen and it travels with the rest of your order.

Hettich AvanTech YOU drawer boxes are soft-close, full-extension kitchen drawers, and also work as replacement drawer boxes.

Sizes

Choose the drawer box by the cabinet width, drawer height and depth your kitchen needs.

Soft close

Hettich drawers have full-extension runners with soft close, so drawers close quietly and fully.

Read our full guide to hettich drawers →

What you're actually buying.

  • 13mm-thick sides with the running gear hidden inside
  • Runners included: Quadro YOU (30kg) or Actro YOU (40kg)
  • Heights 101mm and 139mm, plus 187mm internal pot-and-pan drawers
  • Silver or anthracite
  • Minimum installed depth 453mm
  • Pairs with OrgaTray 780 inserts and AvanTech YOU anti-slip mats

BrandHettich
SystemAvanTech YOU
Nominal length450mm
Minimum installed depth453mm
Heights101mm, 139mm, 187mm (internal)
ColoursSilver, anthracite
RunnersQuadro YOU M (30kg), Actro YOU L (40kg)
In each setSide profiles left and right, 2 design profiles, 2 front connectors, 2 rear panel stabilisers, 2 cover caps, runners left and right and fixings
PriceAsk us — not yet on our online store

Details from Hettich (hettich.com), checked September 2026. Your designer will confirm sizes before you order.

See AvanTech YOU drawer box, 450mm deep in action.

2 videos from Hettich Group, including a fitting guide.

Drawer system AvanTech YOU: Design varieties and design freedom | Hettich Overview Drawer system AvanTech YOU: Design varieties and design freedom | Hettich YouTube · Hettich Group AvanTech YOU drawer system. Assembly animation in brief Fitting guide 2:05 AvanTech YOU drawer system. Assembly animation in brief YouTube · Hettich Group

Videos play on YouTube in a new tab. They’re made by the manufacturers and their distributors, so some show parts or finishes we don’t stock — the models and prices above are what we sell.
